Free air delivery: 2 m3/min
Working pressure: 30bar
Screw air end rotor lobe: 5:6
Control: PLC
Driven: belt
Cooling: by air
Electric motor: 30hp 22KW 380v/50hz/3ph IP54 grade
Discharge temperature: less than ambient +8 ºC
Noise: less than 65 dB(A)
Air outlet size: G3/4"
Dimension:2200*1600*1970mm
Weight: 1460kg
Warranty: 24 months for the screw air end,12 months for the whole set compressor.

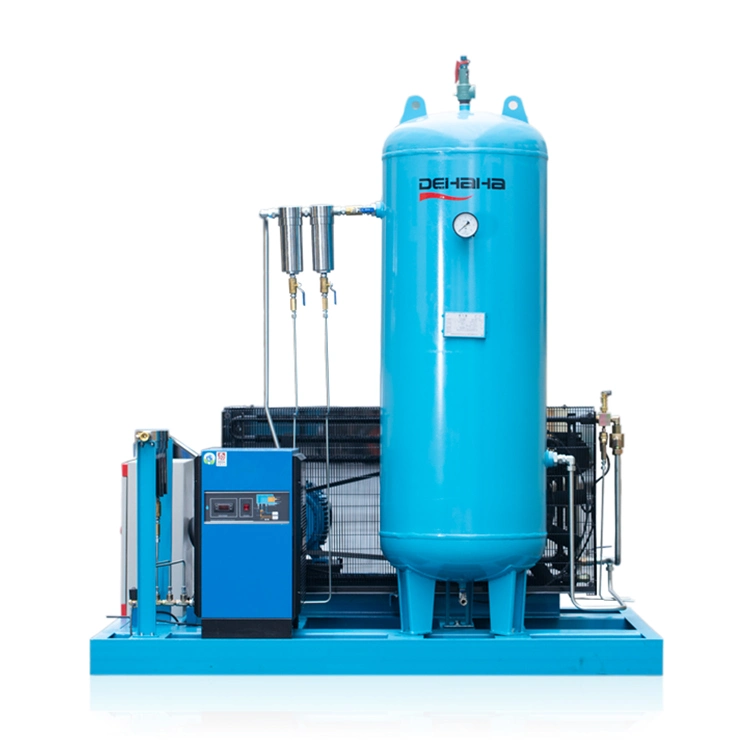

The air compressor specially designed for medium-pressure laser cutting is an integrated armored equipment developed by DEHAHA compressor for the sheet metal and laser industries. The system is equipped with 1~3m3/min@30bar/40bar compressed air, air tank 130L -1000L (optional), stainless steel plate for freeze dryer, lower pressure dew point, 5-stage precision filter, centralized electronic sewage, thereby ensuring the cleanness of the cutting gas source.
Technical Parameters
| Model | Exhaust pressure(Mpa) | Volume flow (m3 / min) | Power(kW) | Outlet diameter | Dimension(mm) | Weight(kg) |
| DHH1030 | 3 | 1.0 | 11 | G3/4" | 1650*1500*1970 | 1230 |
| DHH1230 | 3 | 1.2 | 15 | G3/4" | 1650*1500*1970 | 1300 |
| DHH1630 | 3 | 1.6 | 18.5 | G3/4" | 2200*1600*1970 | 1400 |
| DHH2030 | 3 | 2.0 | 22 | G3/4" | 2200*1600*1970 | 1460 |
| DHH2530 | 3 | 2.5 | 25 | G3/4" | 2200*1600*1970 | 1530 |
| DHH2040 | 4 | 2.0 | 25 | G3/4" | 2200*1600*1970 | 1530 |
| 2-DHH3030 | 3 | 3.0 | 37 | G1" | 2400*2900*1970 | 1750 |
1. High compression efficiency. The process of compressing gas by a piston compressor is a closed system, and its compression efficiency is high.
2. A wide range of applicable pressures. Piston compressors can be designed for medium pressure, high pressure, and ultra high pressure, and at constant speeds, when the exhaust pressure fluctuates, the displacement of the piston compressor remains basically unchanged.
Advatages
1. Valve materials are made of Sweden stainless steel band.
2. In order to ensure that air compressor highly reliable, using a redundant design principles, setting multiple protection measures: unloading, down drain, exhaust, ensure that the zero-pressure start.
3. Timed drain valve: Drainage and drainage at a time interval can be adjusted. Ensure that the captain of an air compressor runs comtinuously between regular drainage, effectively preventing water too much liquid strike accidents.
4. Low exhaust temperature(10.0MPa exhaust air temperature ≤ 170 degrees, the temperature of exhaust air is above ambient temperature of 15-20 ºC from after - cooler).
5. Fuel consumption per hour less than 0.143/KW.
6. High reliability and long maintenance period, very low fuel consumption, low energy consumption and so on, greatly reducing the overall general operating costs.
Air end
The compression efficiency of piston compressor is high,and the process of gas compression of piston compressor belongs to closed system, and its compression efficiency is high. the adaptability of piston compressor is strong,and the exhaust volume of piston compressor is wide.
Control Panel
Real-time observation of the compressor operation status:Host, fans, exhaust gas temperature, exhaust pressure,power output, total electricityconsumption, fault messages, 24-hour customer service line.
Multifunction Design: Data curve, parameter settings,device information, data query.
Freeze dryer
Choose the refrigerated dryer designed with aluminum alloy three-in-one plate heat exchanger, no pollution, high efficiency, high purity; universal choice, simple and reliable design, stable performance, no icing phenomenon, easy to install.
Air Tank
The gas storage tank can store a certain amount of gas, and the output air pressure is relatively stable, at the same time, it can reduce the temperature in the gas path and remove some water, dust and impurities. The gas storage tank adopts high quality material as raw material, uses advanced welding technology to work, and passes ISO9001 certification.
Especially suitable for: water and electricity, PET bottle blowing, leak detection, military and other fields
Project Case
About us
Dehaha Compressor was founded in 1996 with over 150 skilled employees and more than 25 R&D engineersteams ' . We focus on the research & develop,manufacture and energy-saving solutions of screw air compressor to create value for customers and society.In 2018 our total sales volume approached 15 million US dollars.By over 23 years enhanced experiences of designing,producing and marketing,today our valued customers are over 130 countries.Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents.
Dehaha's primary businesses focus in following key areas:
Oil-injected rotary screw compressors
Portable screw air compressors
Oil free air compressors
High pressure air compressors
Air treatment equipment
At Dehaha,we earn our customers' trust and satisfaction by manufacturing the superior quality compressed air
products for all industries.All of our products are designed for reliable performance,easy maintenance,and maximum energy efficiency.We have sales representatives who can speak English,Spanish,French,and Russian which makes it easier for our clients from all over the world to interact and negotiate with us.
Dehaha continuously innovates product development and management to meet customers' demand.The powerful enterprise culture and continuous innovation make Dehaha improved rapidly to reach the business principle"Energy Saving First, Mutual Value Shared". Dehaha mission is to be a world-renowned high-end brand,with sustainable development,constantly improving its own value and sharing it with our customers and staff.Committed to offer our customers a silent and energy-saving manufactured products.
Why choose us
Our Services
After-sale Service
• Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.
• Warranty: One year for the whole machine Genuine spare parts will be provided with the best price.
• An overboard engineer service is available.
Overseas Engineer Service
• We are available to send our engineer for aboard service. Only need you to arrange accommodation, transportation, and translator. The extra cost for each will be discussed based on the local price level.
Special Customized Service
(1) Full OEM
• Quantity: at least 5 pcs
• In this plan, we will do all the changes (Color, nameplate, and logo) as your need, and will not charge extra fee.
(2) Half OEM
• Quantity: no limit
• Under this program, we can make the necessary alteration (nameplate and logo) but we will charge some extra fee for the nameplate, as the nameplate factory has the MOQ.
(3) Logo OEM
• Quantity: no limit
• Only the logo will be changed to yours, and no extra fee will be charged.
FAQ
1.Why customer choose us?
DHH COMPRESSOR JIANGSU CO.,LTD.with 24 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.
3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
4.What's your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.
5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines.
6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
7.How long could your air compressor be used?
Generally, more than 10 years.
8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.
9.How about your customer service?
24 hours on-line service available.48 hours problem solved promise.
10.How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
