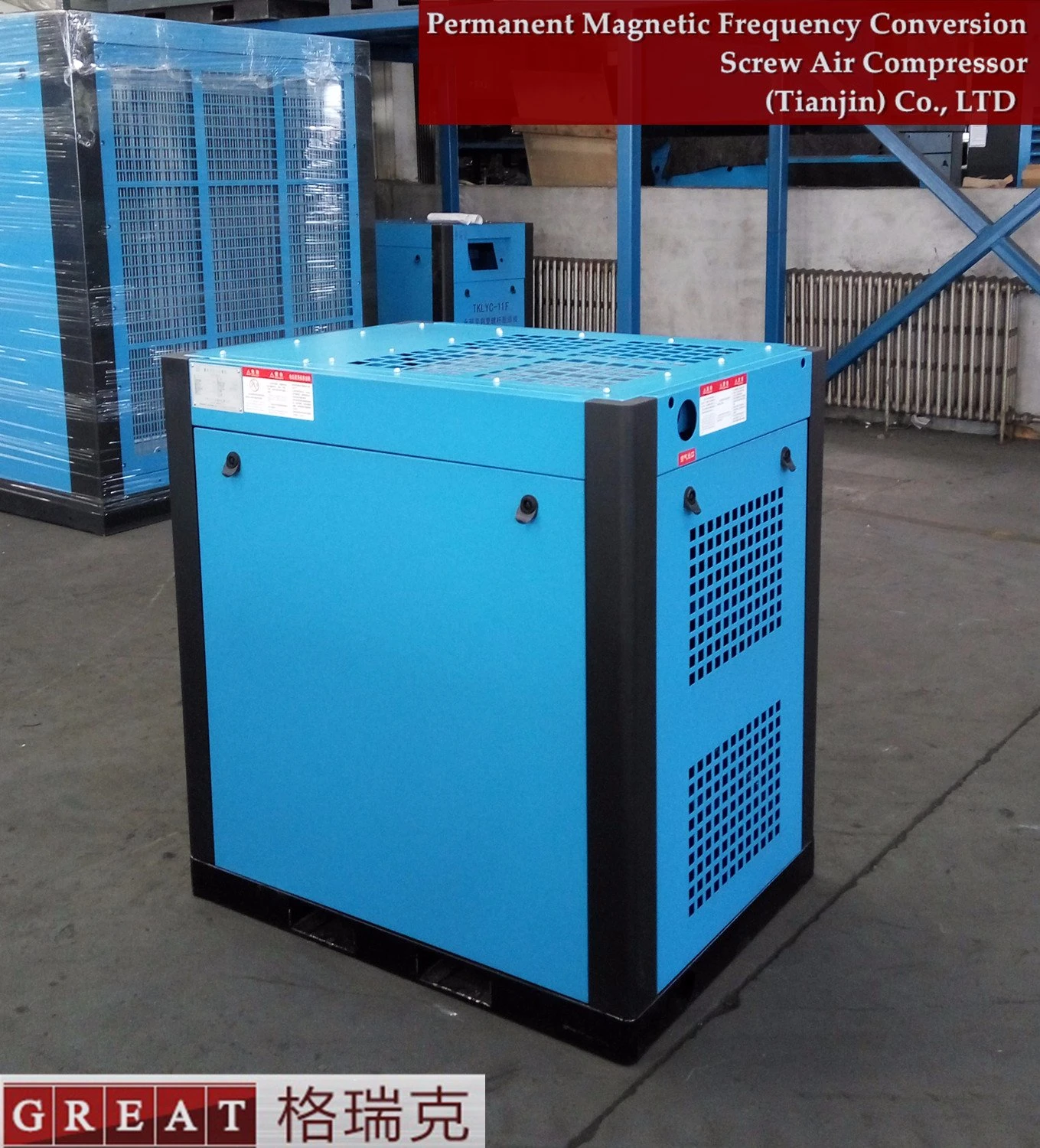

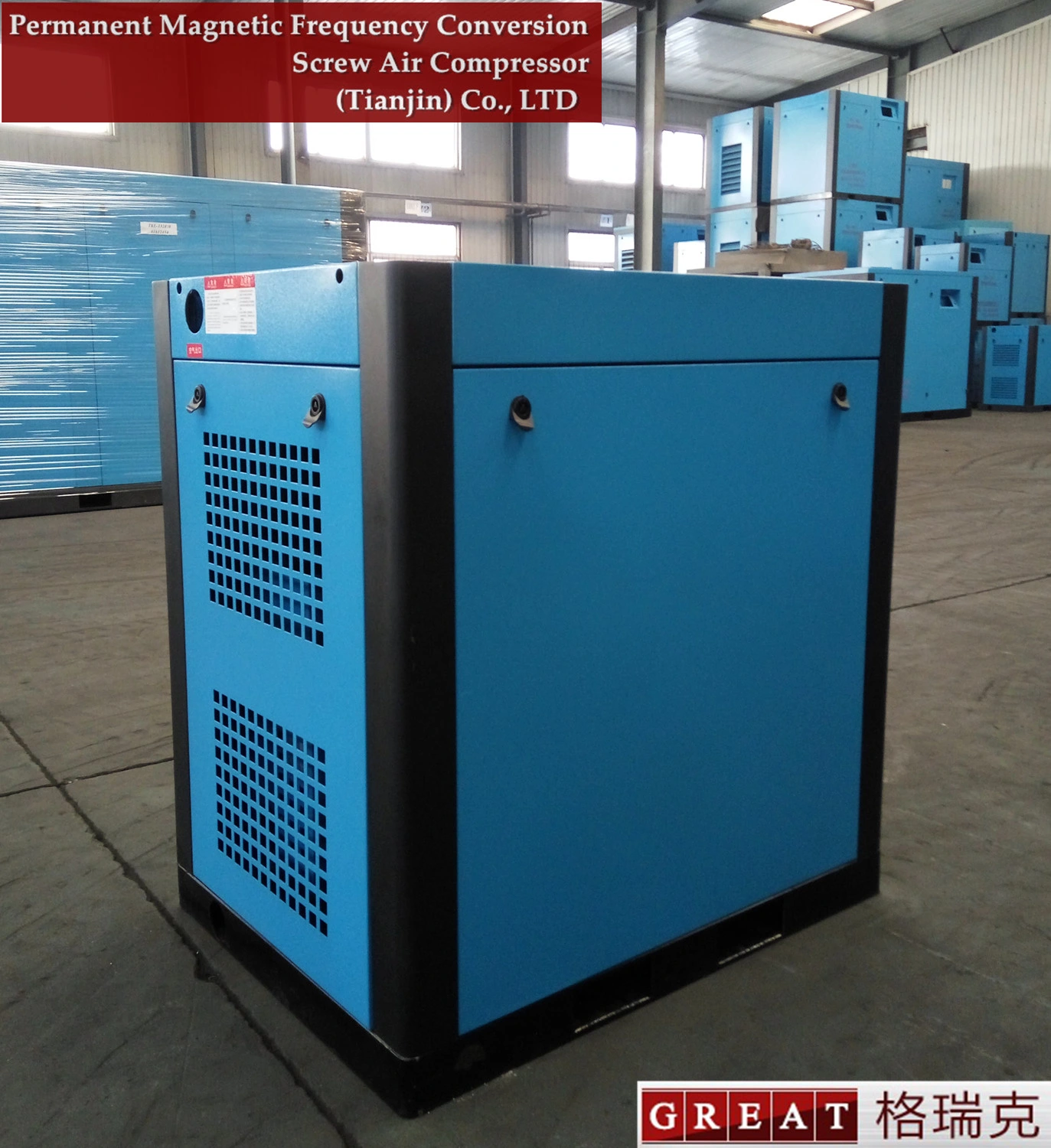

Energy saving air cooling type high pressure air compressor
Energy Saving Air Cooling Type High Pressure Air Compressor
Energy saving advantages of permanent magnetic frequency conversion two rotors/screw air end:

Energy Saving Air Cooling Type High Pressure Air Compressor

1. Adopt One-piece shaft of the permanent magnetic motor and the air end
Permanent magnetic Motor' rotor is directly sleeved on shaft of the air end, embedded integrated direct-connecting structure, without coupling part or transmission gear, namely one-piece shaft, ensure 100% transmission efficiency.
★Taper connection is adopted for motor, and it can be assembled and disassembled very simply.
2. Adopt permanent magnetic frequency conversion electric motor
Permanent magnetic frequency conversion motor is the most advanced technical electric motor, efficiency can be up to 97%, higher by 3%-5% than ordinary motor with frequency conversion device type, saving energy a lot obviously.
Permanent magnetic electric motor adopt high temperature resistance rare earth permanent magnet to ensure no demagnetization. Without motor bearing or sleeve, so no need lubricating grease, no need concern alignment problem, compact structure, saving space, convenient use and maintenance.
3. Wide frequency conversion, constant pressure air feeding
★Frequency application scope (0HZ-200HZ) is wide, and motor efficiency under different load is basically constant.
★The motor is big torque, strong adaptability and loaded startup.
The whole machine work in frequency conversion state, and can operate frequency modulation according to the client's actual requirement of air consumption at constant pressure, realizing high efficiency and energy saving.
5. Running stable and reliable
Machine starting on frequency conversion state, greatly reducing the impact to the power grid equipment, avoiding of damage to the electric equipment, and saving electric energy when starting.
No need to set working pressure up and bottom limit value, can operate by regulating the frequency at the setting pressure point to stabilize the pressure, so can save electric energy by 10%-15%.
6. Energy saving a lot obviously
 Compared with the fixed speed type compressor, our permanent magnetic frequency conversion compressor can save energy by 30%; compared with the ordinary motor and frequency device  type compressor, our compressor can save energy by 5%-10%.


Advantages of the whole air compressor unit:
1. Approved by ISO9001certificate, SGS, CE and etc..
2. Adopt world famous brand of twin-screw air end, high efficiency, reliable and long use life.
3. Adopt world famous brand of air intake filter, oil filter, air and oil separator, realize high filtration accuracy, compressed air oil content under 3ppm, reach to international advanced standard level.
4. Equip with the most advanced air control system. Adopt air intake valve, intelligent control system and pressure sensor combined control method, can operate by ON and OFF two point, stepless air capacity control system, time-delay stop and automatically start device three air capacity control method, can meet different clients demand.
5. Intelligent microcomputer control system, Chinese and English language operation interface, malfunction display, alarm and machine stop automatically.
6. Adopt high quality and world famous brand of main components, like UK APD oil filter, America AMOT temperature controlling valve, SCHNEIDER electric parts and etc., high efficiency, reliable and long use life.


Technical parameter of this single stage two rotors/ screw air compressor:
Model Exhause pressure (Mpa)Air displacemen (m3/min)Power (Kw)Noise (dBa)Dimensions (mm)Outlet pipe sizeWeight (Kg)
TKLYC-7F0.7/0.8/1.01.23/1.16/1.027.565±3840*670*925G3/4350
TKLYC-11F0.7/0.8/1.01.65/1.62/1.47.565±31000*820*1145G3/4390
TKLYC-15F0.7/0.8/1.02.65/2.24/2.11565±31300*850*1257G1410
TKLYC-18F0.7/0.8/1.03.1/3.0/2.718.565±31300*850*1257G1440
TKLYC-22F0.7/0.8/1.03.8/3.7/3.32265±31300*850*1258G1650
TKLYC-30F0.7/0.8/1.05.3/5.1/4.53068±31600*1100*1430G1 1/2800
TKLYC-37F0.7/0.8/1.06.7/6.5/5.73768±31600*1100*1430G1 1/2850
TKLYC-45F0.7/0.8/1.08.6/8.0/7.14568±31600*1100*1430G1 1/2900
TKLYC-55F0.7/0.8/1.010.3/10.1/9.35572±31750*1150*1500DN501650
TKLYC-75F0.7/0.8/1.014.0/13.5/12.57572±31750*1150*1500DN501800
TKLYC-90F0.7/0.8/1.017.2/15.9/14.09072±32000*1150*1680DN501950
TKLYC-110F0.7/0.8/1.021.4/19.9/18.111073±32300*1540*1900DN802500
TKLYC-132F0.7/0.8/1.024.6/23.8/22.113273±32300*1540*1900DN802600
TKLYC-160F0.7/0.8/1.028.7/27.1/25.216075±32900*1540*2120DN803600
TKLYC-185F0.7/0.8/1.033.5/30.5/27.018576±33100*1940*2389DN804200
TKLYC-200F0.7/0.8/1.036.5/33.5/30.620078±33100*1940*2389DN1004400
TKLYC-250F0.7/0.8/1.045.3/43.0/38.125078±33400*2050*2330DN1004900

Our factory and workshop:

Energy Saving Air Cooling Type High Pressure Air Compressor

After sales service:
1. Providing professional air compression program designing for free.
2. Providing our factory original machine parts at lowest price after machine sales.
3. Providing training and guidance for free, customers can send their staff to our factory to learn how to operate the machines.
4. Warranty period: the screw main machine is one year, the bearing is one year, the wear parts of air intake valve, electric components, electromagnetic valve, rate valve are 6 months
5. The air filter, oil filter, oil-water separator, lubricating oil, rubber parts and etc. are not included in warranty range.

Certification and patents of our air compressor

Energy Saving Air Cooling Type High Pressure Air Compressor



FAQ:
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Warranty terms of your machine?
A2: One year warranty for the machine and technical support according to your needs.
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.
Q4: How long will you take to arrange production?
A4: 380V 50HZ we can delivery the goods within 20 days. Other electricity or other color we will delivery within 30 days.
Q5: Can you accept OEM orders?
A5: Yes, with professional design team, OEM orders are highly welcome!
