Product description

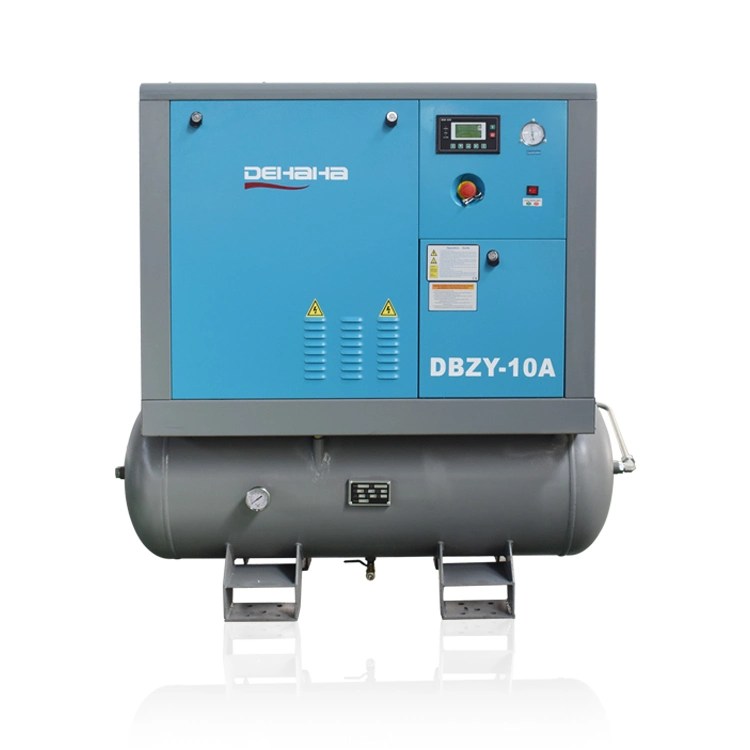

DEHAHA Combined Screw Air compressor is assembled with screw air compressor, refrigerated air dryer, air receiver tank and precision filter. Main Features :
1.Full performance in one screw compressor, convenience and save space
2.High efficiency performance, reliable quality
3. Large displacement: Displacement 10% higher than ordinary piston compressor.
4. Energy-saving: Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
5. Easy to operate: 24 hours unattended all day work, free load automatically start, full load automatically shut down.
6.Strong stability:Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
Model: DBZY-10A
Free air delivery: 1.2 m3/min
Screw air end rotor lobe: 5:6
Brand of screw air end: Hanbell Taiwan
Control: PLC
Driven: belt
Cooling: by air
Electric motor: 10hp 7.5KW 380v/50hz/3ph
Discharge temperature: less than ambient +8 ºC
Noise: less than 65 dB(A)
Air outlet size: G3/4"
Air tank: 260 L
Air dryer capacity: 1.35m3/min
Dimension: 1418*700*1500mm
Weight: 395kg
Our screw compressor combined with air dryer and tank parameter list:
Features:
1.Compact and low noise, modular structure design, durable parts, efficient and reliable belt drive,
2.Fully enclosed protective enclosure, small vibration, ergonomics design and convenient maintenance.
3. Power: 3~15KW
4. Pressure:7~10bar
5. Capacity: 0.44~2.4m3/min
Company Profile
Dehaha Compressor was founded in 1996 with over 150 skilled employees and more than 25 R&D engineers' teams. We focus on the research & develop,manufacture and energy-saving solutions of screw air compressor to create value for customers and society.In 2018 our total sales volume approached 15 million US dollars.By over 23 years enhanced experiences of designing,producing and marketing,today our valued customers are over 130 countries. Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents. Dehaha's primary businesses focus in following key areas: Oil-injected rotary screw compressors Portable screw air compressors Oil free air compressors High pressure air compressors Air treatment equipment At Dehaha,we earn our customers' trust and satisfaction by manufacturing the superior quality compressed air products for all industries.All of our products are designed for reliable performance,easy maintenance,and maximum energy efficiency.We have sales representatives who can speak English,Spanish,French,and Russian which makes it easier for our clients from all over the world to interact and negotiate with us. Dehaha continuously innovates product development and management to meet customers' demand.The powerful enterprise culture and continuous innovation make Dehaha improved rapidly to reach the business principle"Energy Saving First, Mutual Value Shared". Dehaha mission is to be a world-renowned high-end brand,with sustainable development,constantly improving its own value and sharing it with our customers and staff.Committed to offer our customers a silent and energy-saving manufactured products.
Application Industry
Shipping and shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Our exhibition
Our service
FAQ
1.Why customer choose us?
DHH COMPRESSOR JIANGSU CO.,LTD.with 23 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.
3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
4.What's your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.
5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines.
6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
7.How long could your air compressor be used?
Generally, more than 10 years.
8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.
9.How about your customer service?
24 hours on-line service available.48 hours problem solved promise.
10.How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
DEHAHA Combined Screw Air compressor is assembled with screw air compressor, refrigerated air dryer, air receiver tank and precision filter. Main Features :
1.Full performance in one screw compressor, convenience and save space
2.High efficiency performance, reliable quality
3. Large displacement: Displacement 10% higher than ordinary piston compressor.
4. Energy-saving: Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
5. Easy to operate: 24 hours unattended all day work, free load automatically start, full load automatically shut down.
6.Strong stability:Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
Model: DBZY-10A
Free air delivery: 1.2 m3/min
Screw air end rotor lobe: 5:6
Brand of screw air end: Hanbell Taiwan
Control: PLC
Driven: belt
Cooling: by air
Electric motor: 10hp 7.5KW 380v/50hz/3ph
Discharge temperature: less than ambient +8 ºC
Noise: less than 65 dB(A)
Air outlet size: G3/4"
Air tank: 260 L
Air dryer capacity: 1.35m3/min
Dimension: 1418*700*1500mm
Weight: 395kg
Our screw compressor combined with air dryer and tank parameter list:
| DBY Series(Combined with air tank) Screw Compressor | ||||||||||||||
| DHH | Air flow Capacity(m3/min)/cfm | Power | Noise | Diameter | Dimension | Weight | ||||||||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | KW/HP | DB(A) | INCH | W×D×H mm | Kg | ||||||
| MODEL | m3/min | cfm | m3/min | cfm | m3/min | cfm | m3/min | cfm | ||||||
| DBY-7.5A | 0.91 | 32.1 | 0.84 | 29.6 | 0.75 | 26.5 | 0.63 | 22.2 | 5.5/7.5 | 65 | G3/4'' | 1230×600×1262 | 375 | |
| DBY-10A | 1.3 | 45.9 | 1.2 | 42.4 | 1 | 35.3 | 0.84 | 29.6 | 7.5/10 | 65 | G3/4'' | 1230×600×1262 | 395 | |
| DBY-15A | 1.7 | 60 | 1.6 | 56.5 | 1,4 | 49.4 | 1.2 | 42.4 | 11, 15 | 65 | G3/4'' | 1470×800×1615 | 500 | |
| DBY-20A | 2.4 | 84.8 | 2.3 | 81.2 | 2 | 70.6 | 1.6 | 56.5 | 15/20 | 68 | G3/4'' | 1470×800×1615 | 530 | |
| DBZY Series(Combined with air dryer and tank) Screw Compressor | ||||||||||||||
| DHH | Air flow Capacity(m3/min)/cfm | Power | Noise | Diameter | Dimension | Weight | ||||||||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | KW/HP | DB(A) | INCH | W×D×H mm | Kg | ||||||
| MODEL | m3/min | cfm | m3/min | cfm | m3/min | cfm | m3/min | cfm | ||||||
| DBZY7.5A | 0.91 | 32.1 | 0.84 | 29.6 | 0.75 | 26.5 | 0.63 | 22.2 | 5.5/7.5 | 65 | G3/4'' | 1418×700×1500 | 375 | |
| DBZY-10A | 1.3 | 45.9 | 1.2 | 42.4 | 1 | 35.3 | 0.84 | 29.6 | 7.5/10 | 65 | G3/4'' | 1418×700×1500 | 395 | |
| DBZY-15A | 1.7 | 60 | 1.6 | 56.5 | 1,4 | 49.4 | 1.2 | 42.4 | 11, 15 | 65 | G3/4'' | 1418×860×1628 | 500 | |
| DBZY-20A | 2.4 | 84.8 | 2.3 | 81.2 | 2 | 70.6 | 1.6 | 56.5 | 15/20 | 68 | G3/4'' | 1418×860×1628 | 530 | |
1.Compact and low noise, modular structure design, durable parts, efficient and reliable belt drive,
2.Fully enclosed protective enclosure, small vibration, ergonomics design and convenient maintenance.
3. Power: 3~15KW
4. Pressure:7~10bar
5. Capacity: 0.44~2.4m3/min
Company Profile
Dehaha Compressor was founded in 1996 with over 150 skilled employees and more than 25 R&D engineers' teams. We focus on the research & develop,manufacture and energy-saving solutions of screw air compressor to create value for customers and society.In 2018 our total sales volume approached 15 million US dollars.By over 23 years enhanced experiences of designing,producing and marketing,today our valued customers are over 130 countries. Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents. Dehaha's primary businesses focus in following key areas: Oil-injected rotary screw compressors Portable screw air compressors Oil free air compressors High pressure air compressors Air treatment equipment At Dehaha,we earn our customers' trust and satisfaction by manufacturing the superior quality compressed air products for all industries.All of our products are designed for reliable performance,easy maintenance,and maximum energy efficiency.We have sales representatives who can speak English,Spanish,French,and Russian which makes it easier for our clients from all over the world to interact and negotiate with us. Dehaha continuously innovates product development and management to meet customers' demand.The powerful enterprise culture and continuous innovation make Dehaha improved rapidly to reach the business principle"Energy Saving First, Mutual Value Shared". Dehaha mission is to be a world-renowned high-end brand,with sustainable development,constantly improving its own value and sharing it with our customers and staff.Committed to offer our customers a silent and energy-saving manufactured products.
Application Industry
Shipping and shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Our exhibition
Our service
FAQ
1.Why customer choose us?
DHH COMPRESSOR JIANGSU CO.,LTD.with 23 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.
3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
4.What's your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.
5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines.
6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
7.How long could your air compressor be used?
Generally, more than 10 years.
8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.
9.How about your customer service?
24 hours on-line service available.48 hours problem solved promise.
10.How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
