Product description:

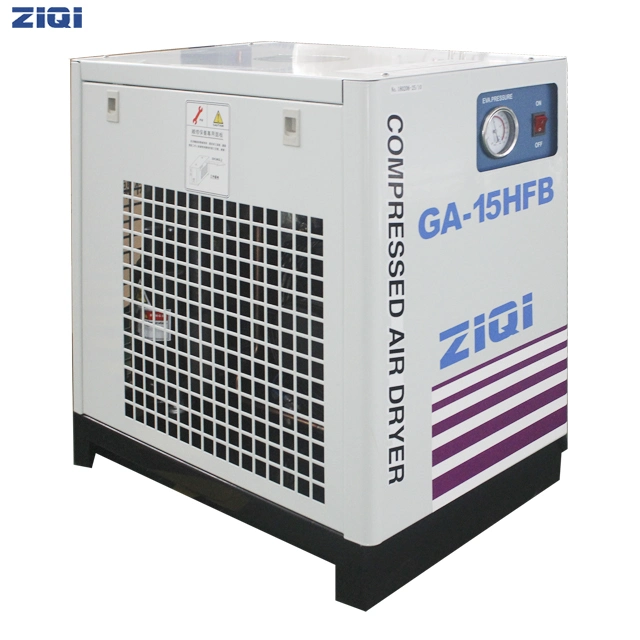

Air dryer:
Inlet temperature: ≤ 80º C
Inlet pressure: 0.2~1.0Mpa
Cooling method: Air cooling
Dew point: 2º C~10º C
Refrigerant: R22
Pressure drop: ≤ 0.02Mpa
Ameican Hanksion filter, high efficiency
Key parts original imported, make sure that work stably and long time service life.
Easy to instal and maintain.
| Model | Air capacity M ³ /min | Electricity V/Hz | Compressor motor power Kw/hp | Fan power W | Air connection Inch | Net weight Kg | Dimension mm |
| GA-10HF | 1.2 | 220/50 | 1/0.85 | 90 | ZG1 | 50 | 460*630*640 |
| GA-20HF | 2.4 | 220/50 | 1/0.85 | 90 | ZG1 | 90 | 450*700*830 |
| GA-30HF | 3.8 | 220/50 | 1.25/1.25 | 120 | ZG1.5 | 110 | 500*850*930 |
| GA-50HF | 6.8 | 220/50 | 1.5/1.5 | 180 | ZG1.5 | 200 | 560*900*1030 |
| GA-75HF | 10.7 | 380/50 | 3/2.5 | 2*120 | ZG2 | 260 | 670*1180*1100 |
| GA-100HF | 13.5 | 380/50 | 3/2.5 | 2*120 | ZG2 | 280 | 670*1180*1100 |
| GA-120HF | 17 | 380/50 | 3.6/3 | 2*120 | DN65 | 330 | 670*1180*1100 |
| GA-175HF | 24 | 380/50 | 5/4 | 2*180 | DN80 | 450 | 1450*750*1200 |
| GA-250HF | 33 | 380/50 | 7.5/6.5 | 4(3)*180 | DN100 | 780 | 1650*930*1500 |
| GA-350HF | 45 | 380/50 | 10.5/8.8 | 4(3)*210 | DN125 | 820 | 1950*1100*1850 |
| GA-425HF | 55 | 380/50 | 12/10.2 | 6*180 | DN125 | 900 | 1950*1100*1850 |
| GA-475HF | 68 | 380/50 | 15/13 | 6(4)*210 | DN125 | 1100 | 2280*1600*1850 |
Company information
Shanghai ZIQI Group air compressor is always in accordance with the European advanced design philosophy and exquisite assembly technology, also continuously updating the manufacturing technique, enhance monitoring methods. ZIQI group alwaysoffer the best compressed air system solutions for you.
Our factory products line contains air-cooling screw air compressor, water-cooling screw air compressor, variable frequency screw air compressor and portable screw air compressor, refrigerated air dryer, adsorption air dryer, ultrafilters etc...
